Slip-On Flange Installation and Benefits Explained

When it comes to industrial piping systems, selecting the right flange is crucial for ensuring secure connections and preventing leaks. One such flange is the Blind Flange, a vital component in many pipeline systems. In this blog post, we will dive deep into the Slip-On Flange installation process, its benefits, and how it relates to Blind Flanges. We’ll explore its applications, advantages, and the best installation practices, while highlighting its crucial role in maintaining safe and efficient piping systems.

Understanding Blind Flanges
Before diving into Slip On Flange, it is essential to understand Blind Flanges and their significance in the piping industry. A Blind Flange is a type of flange that is used to seal the end of a pipe or valve. Unlike other types of flanges that connect two pipe sections, a Blind Flange is designed to block off the pipe completely, thus preventing any fluid or gas from flowing through the pipeline.

How Blind Flanges Work
Blind Flanges are typically used when a section of a pipeline is either under construction, not yet in use, or temporarily inactive. The flange’s primary function is to maintain pressure within the system and to prevent any contamination from entering the pipeline. These flanges can be used in a variety of settings, including oil and gas, chemical plants, and water treatment facilities.

Types of Blind Flanges
There are several types of Blind Flanges, and each one serves different needs. Some of the common types include:

Flat Face Blind Flange: It has a flat sealing surface that fits against the gasket and is ideal for systems that deal with low pressure.
Raised Face Blind Flange: The raised portion allows for more pressure containment.
Ring Type Joint Blind Flange: A high-pressure flange that uses a metal ring to form a tight seal.
Each of these Blind Flanges is designed to meet specific engineering requirements, and their installation method varies accordingly.

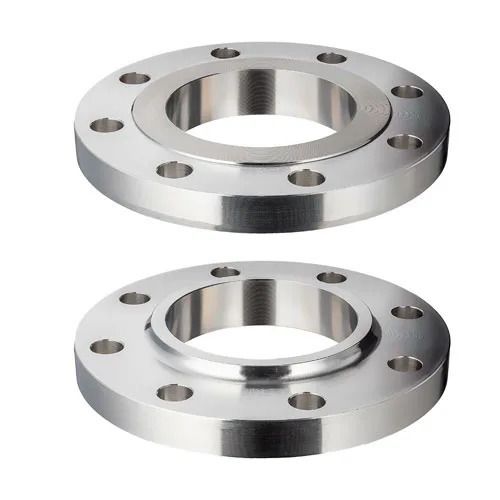

Slip-On Flange Overview
A Slip-On Flange is another critical component in piping systems, distinct from Blind Flanges in that it is used to connect two pipe ends rather than sealing off an opening. The Slip-On Flange is designed to slip over the pipe, and it is typically welded both inside and outside to secure the connection.

Why Choose a Slip-On Flange?
The Slip-On Flange is chosen primarily for its ease of installation. It is often used in systems where pipe alignment is not as crucial or when ease of installation is more important than the sealing strength offered by other flanges like Weld Neck Flanges. Slip-On Flanges are particularly popular in systems with low to medium pressure requirements, where cost-effectiveness and convenience are essential.

Step-by-Step Guide to Installing a Slip-On Flange
Proper installation of a Slip-On Flange is essential to ensure the integrity of the piping system. Below is a comprehensive guide for installing Slip-On Flanges effectively:

1. Preparing the Pipe
   Before installing the Slip-On Flange, it is essential to prepare the pipe. The pipe end should be clean, free from any burrs, and properly aligned. You will also need to ensure that the pipe is cut squarely to ensure a perfect fit with the flange.

2. Positioning the Flange
   Once the pipe is prepared, the Slip-On Flange is slid over the pipe. It is important to ensure that the flange fits snugly but is not too tight. The flange should sit flush with the pipe, ensuring proper alignment before welding.

3. Welding the Flange
   Next, the flange is welded to the pipe. This step typically involves two welds: one on the inside of the flange (root weld) and another on the outside (cover weld). These welds create a secure and leak-proof connection, holding the Slip-On Flange in place.

4. Pressure Testing
   After welding, the connection should be pressure-tested to ensure there are no leaks. This step is crucial in ensuring the integrity of the pipeline, especially in high-pressure systems.

Benefits of Using Slip-On Flanges
Using Slip-On Flanges in your piping system provides several advantages. These benefits make them a go-to choice for many industries, especially where cost and ease of installation are top priorities.

1. Cost-Effective
   One of the primary benefits of Slip-On Flanges is their cost-effectiveness. These flanges are generally less expensive than other types, such as Weld Neck Flanges, while still providing reliable performance for medium-pressure systems.

2. Ease of Installation
   As the name suggests, Slip-On Flanges are easy to install. The design allows the flange to slip onto the pipe without the need for complicated alignment or additional equipment. This ease of installation significantly reduces labor costs and time.

3. Versatility
   Slip-On Flanges are highly versatile and can be used in a variety of piping systems, from low to medium-pressure applications. Their flexibility in use, combined with their durability, makes them ideal for industries such as oil and gas, power plants, and water treatment.

4. Reduced Risk of Leaks
   When installed correctly, Slip-On Flanges offer a robust seal that reduces the risk of leaks in the system. Their double-weld construction (both inside and outside) ensures a secure connection, providing long-term reliability and safety.

Comparing Slip-On Flanges and Blind Flanges
While both Slip-On Flanges and Blind Flanges serve important roles in piping systems, they are used for different purposes. Slip-On Flanges are primarily used for connecting two pipe sections, while Blind Flanges are used to close off the end of a pipe. Both types of flanges have their own set of advantages and ideal applications.

Slip-On Flange vs. Blind Flange: Key Differences
Feature Slip-On Flange Blind Flange
Purpose Connects two pipes Seals the end of a pipe
Installation Simple, involves welding inside and outside Requires fewer welds but thicker material
Pressure Handling Suitable for low to medium pressure systems Ideal for systems where no flow is required
Cost Generally lower cost than Blind Flanges Typically more expensive due to material thickness
Ideal Use Cases
Slip-On Flanges are ideal for systems where ease of installation is key, such as water treatment plants and low-pressure gas pipelines.
Blind Flanges are used when a section of the pipeline needs to be closed off, such as during system maintenance or in non-active sections of the pipe.
FAQ: Common Questions About Slip-On and Blind Flanges

1. What is the difference between a Blind Flange and a Slip-On Flange?
   A Blind Flange is used to seal the end of a pipeline, preventing any flow through it, whereas a Slip-On Flange is used to connect two pipe sections. The Blind Flange is usually thicker and stronger because it needs to withstand higher pressures in some cases, while the Slip-On Flange is more economical and easier to install.

2. Can a Slip-On Flange be used in high-pressure systems?
   While Slip-On Flanges are typically used in low to medium-pressure systems, they can be used in high-pressure systems if the correct material and welding procedures are followed. For extremely high-pressure systems, however, a Weld Neck Flange is often preferred.

3. How do I ensure the correct installation of a Slip-On Flange?
   Proper installation involves ensuring that the pipe is clean and cut properly before positioning the flange. Once the flange is in place, it should be welded securely both inside and outside the flange to create a strong, leak-proof connection. Additionally, pressure testing should always be conducted after installation.

4. Why should I use a Blind Flange?
   A Blind Flange is essential when you need to seal off the end of a pipeline. It prevents any flow or leakage, which is particularly useful during maintenance or construction phases. It is also important for ensuring the integrity of a pipeline during periods of inactivity.

Conclusion
In conclusion, understanding the installation and benefits of Slip-On Flanges and their differences from Blind Flanges can significantly improve the efficiency and safety of your piping system. Slip-On Flanges offer a simple and cost-effective solution for connecting pipe sections, while Blind Flanges play a crucial role in sealing pipeline ends to prevent flow and maintain pressure. By carefully considering your system's needs and following the proper installation practices, you can optimize your piping system's performance.
