Understanding Dry Block Calibrators and Liquid Bath Calibrators: Essential Tools for Temperature Calibration

In various industries, maintaining accurate temperature measurements is crucial for ensuring quality, safety, and regulatory compliance. Two commonly used tools for temperature calibration are the Dry Block Calibrator and the Liquid Bath Calibrator. Both devices offer unique advantages, depending on the specific requirements of the application.

What Is a Dry Block Calibrator?

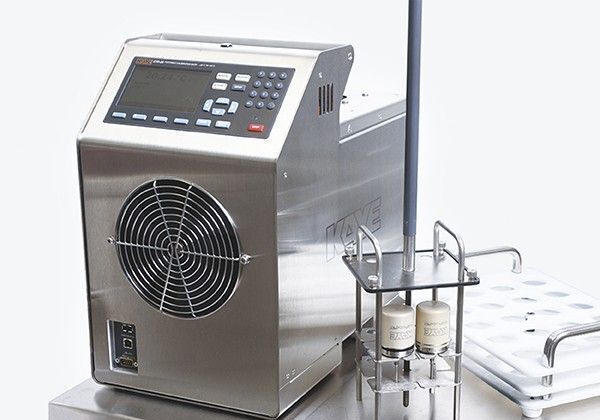

A Dry Block Calibrator is a portable, efficient device designed to provide stable temperature references for calibrating temperature sensors, thermocouples, and RTDs (Resistance Temperature Detectors). It features a metal block with precisely controlled heating and cooling mechanisms. The temperature probes are inserted into drilled holes within the block to compare their readings against the calibrator’s known temperature.

Advantages of Dry Block Calibrators:

1. Portability: Compact and easy to transport, making them ideal for fieldwork.
2. Fast Heating and Cooling: Provides rapid temperature adjustments, reducing calibration time.
3. Dry Operation: Unlike liquid-based systems, dry block calibrators eliminate the risk of contamination.
4. User-Friendly Interface: Often equipped with digital displays and programmable settings for enhanced usability.

Applications:

Industries such as pharmaceuticals, food processing, manufacturing, and HVAC heavily rely on Dry Block Calibrators for on-site calibration of temperature measurement devices.

What Is a Liquid Bath Calibrator?

A Liquid Bath Calibrator is a temperature calibration device that uses a liquid medium, typically oil, water, or silicone, to achieve precise and uniform temperature distribution. This method is particularly effective when calibrating temperature sensors that require high accuracy and stability.

Advantages of Liquid Bath Calibrators:

1. High Accuracy and Stability: Provides superior accuracy by immersing the entire probe in a uniform temperature medium.
2. Wide Temperature Range: Suitable for both low and high-temperature calibration, making it versatile across various industries.
3. Ideal for Irregular Shapes: Can calibrate sensors of various sizes and shapes, providing excellent thermal contact.
4. Long-Term Stability: Offers excellent repeatability, making it suitable for demanding laboratory applications.

Applications:

Liquid Bath Calibrator are widely used in laboratories, calibration facilities, and industries where precise temperature measurement is critical, such as aerospace, chemical processing, and energy production.

Dry Block Calibrator vs. Liquid Bath Calibrator: Key Differences

While both devices are designed for temperature calibration, there are some key differences:

1. Accuracy: Liquid Bath Calibrator generally provide higher accuracy due to better thermal contact and uniformity.
2. Portability: Dry Block Calibrators are more portable and convenient for fieldwork, while Liquid Bath Calibrators are often bulky and suited for lab environments.
3. Response Time: Dry Block Calibrators offer faster heating and cooling, making them ideal for quick calibrations.
4. Cost: Dry Block Calibrators are typically more affordable and easier to maintain compared to Liquid Bath Calibrators.

Conclusion

Both Dry Block Calibrators and Liquid Bath Calibrators play essential roles in temperature calibration across various industries. The choice between the two depends on factors such as accuracy requirements, portability, and the nature of the sensors being calibrated. For high-precision applications, a Liquid Bath Calibrator is ideal, while a Dry Block Calibrator is preferred for quick and portable solutions. Understanding the differences between these tools can help industries achieve reliable and accurate temperature measurement, ensuring product quality and regulatory compliance.
